Features :
- Metal and plastic version available
- Han 3A hoods/housing metal and plastic version available
- Han 3 A /4 A insert also with Han - Quick Lock termination technologi available
- Han 10 A and 16 A insert available in crimp and screw termination
- For current up to 10 A ( Han 3A/ Han 4A and Han 16 A ( Han 10A / Han 16A)

Insert
- Number of contact : 3, 4, 16, 32 ( 2x 16) +PE

Electrical data :
- Han 3 A/ Han 4A : 10A  230/400V   4 kV   3
  Rated current : 10 A
  Rated voltage conductor - ground 230 V
  Rated voltage conductor -conductor : 400V
  Rated impulse voltage : 4 KV
  Pollution degree : 3
  or 10A, 250V,4kV, 3

- Han 10A / Han 16A  : 16A, 250V, 4kV  3
  Rated current : 16A
  Rated voltage : 250V
  Rated impulse voltage : 4 kV
  Pollution degree : 3
  Pollution degree 2 also : 16A   230/400V  4 kV     2

- Rated voltage
  acc. to UL / CSA : 600 V
  Insulation resistance :
  Material : polycarbonate
  Limiting temperature : -40 C ... +125 C
  Flammability : acc. to UL 94  : V 0
  Mechanical working life
   - Mating cycles :


Contacs :
Material : copper alloy
Surface - hard - gold plated : 2  um   Au  over um Ni
Surface - hard - silver plated : 3 um Ag
Contact resistance :<-  1m
Crimp terminal - min : 0,14mm2/ AWG 26
Crimp terminal - max : 4mm2 /AWG 12
Screw terminal - min : 0.75 mm /AWG 18
Screw terminal - max :
    Han 3A /4A : 1.5 mm/ AWG 14
    Han 10A / 16A : 2.5 mm/ AWG 14
Tightening / test torque : 0.25 Nm Han 3A/4A
                                             0,5 Han 10A/ 16A

Termination : Han - quick Lock
Blue slide
  Terminal wire gauge  : 0.5 .... 2.5 mm2   ( AWG 20 - 14)
   Max. insulation diameter : 3.6 mm
 Black slide :
   Terminal wire gauge    : 0.25 .... 1.5 mm2  (AWG 23 - 16)
   Max. insulation diameter : 3.0 mm

Hoods / housing, thermoplastic Han 3A /Han 4A
Material : polycarbonate RAL7032
Locking element : polyamide RAL 7032
Flammability acc. to UL 94 : V 0
Hoods / housing seal : NBR
Limiting temperatures :  -40 C ..... + 125 C
Degree of protection acc, to DIN EN 60 529 for coupled connector : IP 65 / IP 67

Hoods / housing, metal
 Material han 3A / 4A  : zinc die-cast
 Material han 10A/ 16A : alumunium die-cast

 Locking element
    Han 3A/ 4A  : steel, zinc-plated
    Han 10A/ 16A Han-easy lock
 Hoods/ housings seal : NBR
 Limiting temperature : -40C ...  +125 C

 Degree of protection acc, to DIN EN  60 529 for coupled connector
     Han 3A /4A     : IP 44
                                IP 67 is achieved with seal
                                Screw 09 20 000 9918
     Han 10A/ 16A : IP 65

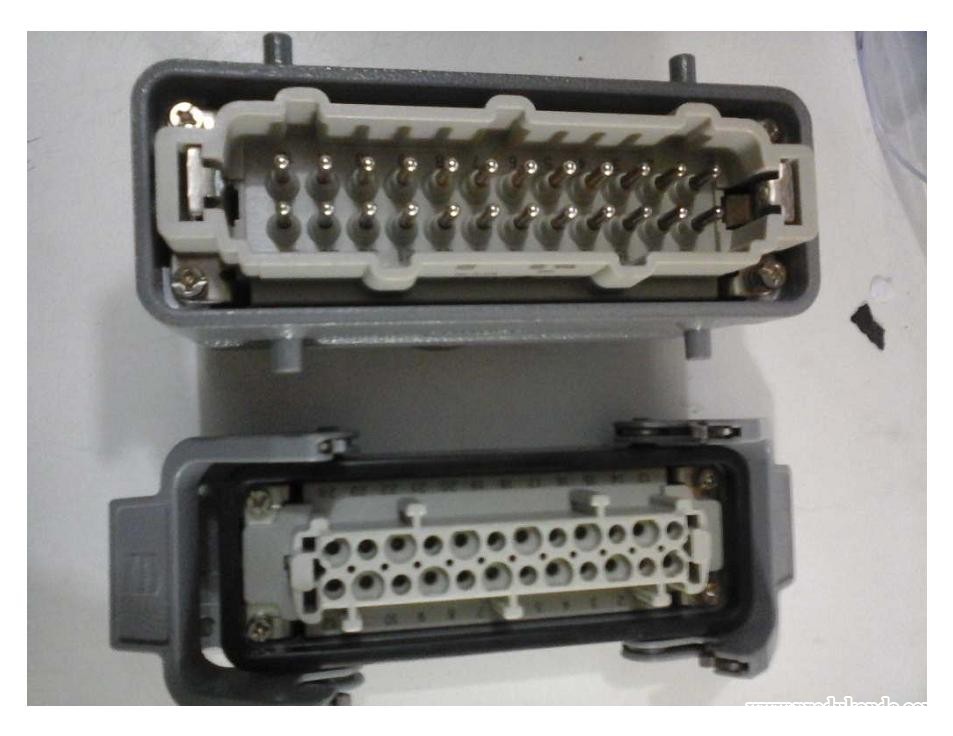

Type : Han 3A, Han 4A, Han 10A, Han 16A, Han 32A
