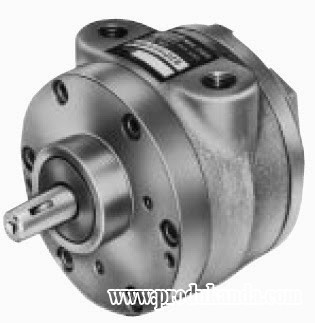

The compact and portable 4AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

Motor Type                           :  Air Motor

Lubrication Type                  : Lubricated

Maximum Power                  : 1.7 hp

Rotation                                 : Reversible

Mounting Type                      : Face

Air Consumption                  : 78 cfm

Free Speed                            :  3,000 RPM

Port Size                                 : 1/4"

Thread Standard                   : NPT

Operating Pressure Range : Maximum of +100 psi

Torque @ Max Speed          : 36 in·lb

Stall Torque                            : 56 in·lb

Speed @ Max Torque          : 300 RPM

Operating Temperature       : +1 to +120 °C

Special Features                   : Air Cushioned Startup

Standards Met                       :  2 GD c T4, EC Directive 94/9EC (ATEX 100a), EX II

Overall Length                       : 147.6 mm

Overall Width                         : 100.1 mm

Overall Height                       :  100.1 mm
