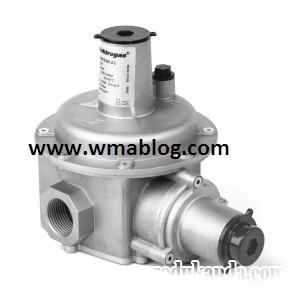

Gas Regulation RFS
Gas pressure regulators with filter and safety shut- off valve
The R… type products are pressure regulators for gaseous media, suitable for all types of gas consuming appliances.
RFS is a regulator with on board filter and safety shut-off valve. In order to assure the safest working conditions, shut-off valve and regulating member are totally independent.
All models are equipped with compensation diaphragm to assure high accuracy and are designed to perform lock-up function.
Max inlet pressure 500 mbar outlet pressure 8..260 mbar*
Accuracy: class A
Max inlet pressure 6 bar
outlet pressure 13..650 mbar*
Accuracy: AC10 or 20* – SG30
Shut-off valve:
min 8..80 mbar*
max 35..1000 mbar*
AG20 or 30*
(*) depending on spring
(**) in progress
1.Material/Connection
•AlSi : Rp3/4 … Rp2 ; DN40 … DN80**
2.Working pressure and accuracy
•0 … 500 mbar
•0 … 6 bar
3.Gas Type
• Air and non-aggressive gases (Family 1-2-3, EN 437)
• Special version for Biogas / aggressive media
4.Approvals ** : EC-type tested and certified according to norm EN88-1 and 88-2 and directive 97/23/EC.
