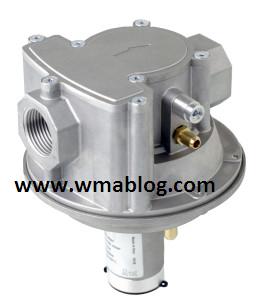

Gas Regulation RAG
Gas pressure regulators with filter and safety shut- off valve
The R… type products are pressure regulators for gaseous media, suitable for all types of gas consuming appliances.
RAG is air/gas ratio control (1:1) for combustion processes. It is provided with adjustable offset spring (+/-3mbar) and adjustable bypass. It is also usable as zero-pressure governor.
All models are equipped with compensation diaphragm to assure high accuracy and are designed to perform lock-up function.
(**) in progress
1.Material/Connection
•AlSi : Rp3/4 … Rp2
2.Working pressure and accuracy
•0 … 500 mbar
3.Gas Type
• Air and non-aggressive gases (Family 1-2-3, EN 437)
• Special version for Biogas / aggressive media
4.Approvals ** : EC-type tested and certified according to norm EN88-1 and 88-2 and directive 97/23/EC.
