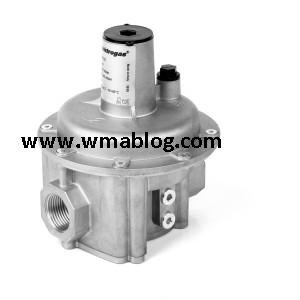

Gas Regulation R-RF
Gas pressure regulators with filter
The R… type products are pressure regulators for gaseous media, suitable for all types of gas consuming systems.
RF is a regulator with an integrated 30-micron filtering element. All models are equipped with compensation diaphragm to assure high accuracy and are designed to perform lock-up function.
Max inlet pressure 500 mbar outlet pressure 8..260 mbar*
Accuracy: class A
Max inlet pressure 6 bar
outlet pressure 13..650 mbar*
Accuracy: AC10 or 20* – SG30
(*) depending on spring
(**) in progress
1.Material/Connection
•AlSi : Rp3/4 … Rp2 ; DN40 … DN80**
2.Working pressure and accuracy
•500 mbar
•6 bar
3.Gas Type
• Air and non-aggressive gases (Family 1-2-3, EN 437)
• Special version for Biogas / aggressive media
4.Approvals ** : EC-type tested and certified according to norm EN88-1 and 88-2 and directive 97/23/EC.
