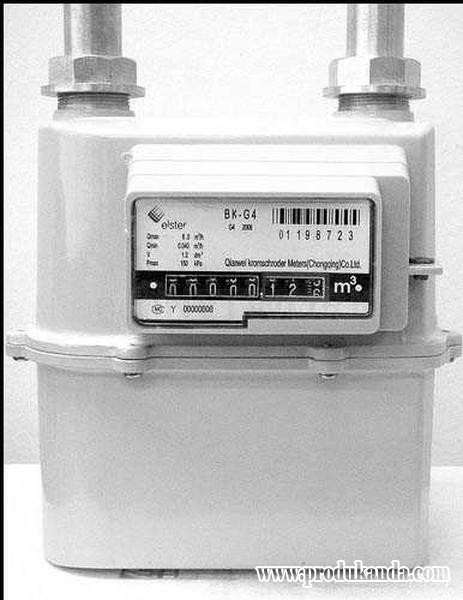

Type : BKG4
The BK-G4 is a synthetic diaphragm meter with an injection-molded aluminum body and is designed for a maximum flow of 200 cfh at 0.25 psig of flow and an operating pressure of 5 psig.
Features:
● Compact design
● Low noise level
● Tamper resistant
● High accuracy and long term reliability
● Synthetic, stadium shaped diaphragm
● Mounting device to strap the meter to the facility
● Anti-return valve which impedes gas theft Specifications:
● Nominal cyclical volume of 0.04 ft3
● Pulse output – 1 ft3/pulse
● Working Temperature: -40 F to 1400 F
● Flows from 1.4 ft3/h to 200 ft3/h
● Maximum operating pressure 5 psig
