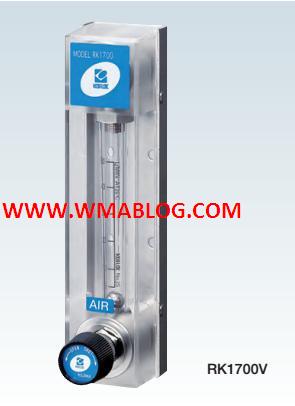

MODEL RK1700 SERIES
Model RK1700 Series Flowmeter centers the focus on cost reduction using SUS 316 as the material of construction. This flowmeter covers flow ranges from 1 l/min to 50 l/min and can be shipped in one week after the customer's purchase order.
Features
-Very reduced price
-One-week delivery
-Compact design
Applications
-Operating temperature is 20°C (at atmospheric pressure).
-The needle is located at the bottom. (Standard specification)
-Supply pressure, standard: 0.1 MPa to 0.3 Mpa
Standard Specifications
|
Flow range (Full scale) |
1L, 5L, 10L, 30L, 50L/MIN (AT20°C) |
|
Fluids |
Use for Air, N2 and O2 exclusively |
|
Accuracy |
FS±7% |
|
Available scale |
10:1 |
|
Proof pressure |
0.5Mpa |
|
Materials |
316, Pyrex, FKM, SUS 304, SUS 303, glass BS: Brass, Pyrex, NBR, SUS303, glass |
|
Temperature Resistance |
MAX. 60°C |
|
Connection |
Rc1/4 |
