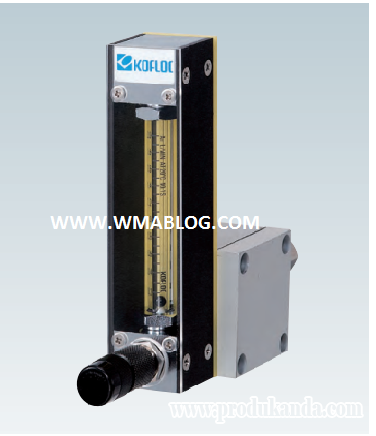

Flow Meter with Flow Controller (Not Subject to Inlet Pressure Change)
MODEL 2504FR SERIES
The constant flow valve Model 2204 that permits constant flow and the precision flow meter RK1400 are combined in this flow meter to permit high-precision measurement and control of a wide flow range from very small flow to medium flow when the gas supply pressure (inlet side) changes.
Features
1.This flow meter ensures constant flow under the constant pressure on its outlet side even if the pressure on the inlet side changes.
2.The flow controller is made on the basis of the Model 2204 with excellent precision control characteristics, permitting smooth control of very small flow.
3.The measuring section of the flow meter made on the basis of the high-precision float type flow meter RK1400 ensures highly reliable flow.
Standard Spesifications
|
Fluids |
Air,N2,O2,H2,He,Ar,CO2 (Calibration with actual gas) |
|
Flow range (FS) |
From 1–10 ML/MIN to 1–10 L/MIN (Refer to the Capacity Table on page 55.) |
|
Accuracy |
FS ±2% (Measurement point) |
|
Control pressure |
The pressure difference between inlet and outlet must be 0.07 MPa or more. |
|
Proof pressure |
5L/MIN or less : 0.7MPa |
|
Available scale |
10:1 |
|
Material |
SS |
Al |
|
Body block |
SUS316 |
Al, Brass |
|
Tapered tube |
Pyrex , glass |
|
|
Packing |
FKM |
NBR |
|
Float |
Pyrex, SUS316, glass |
|
|
Protective cover |
Acrylic resin |
|
|
Heat resistance |
MAX60℃ |
|
|
Connection |
Rc 1/4 (Standard), Rc 1/8 (Optional) |
|
