MODEL RK1950AP SERIES

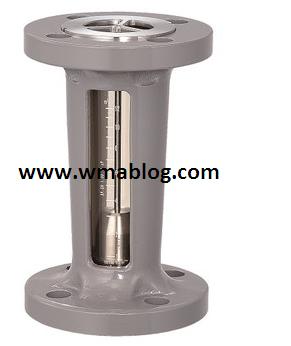

Amber tapered tube with secure structure
Features
-Float receiver functions also as a joint, for secure piping.
- The block tapered tube has an O-ring seal.
-The integral housing protects the tapered tube.
-The tapered tube made of engineering plastic is impact-resistant.
Standard Specifications
|
Accuracy |
±2%F.S |
||
|
Max. operating temperature |
120℃ |
||
|
Max. operating pressure |
1 MPa for 40 A or less |
0.8 MPa for 50 A or more |
|
|
Direction of flow |
Bottom → Top |
||
|
Coating |
Finish color: Gray (Close to Munsell N-6.5) |
||
|
Connection standard |
JIS10K-RF 10A-100A |
Flange only |
|
|
Part name |
Material |
|
Float receiver |
SUS304 |
|
O-ring |
NBR |
|
Tapered tube |
Polysulfone resin (Transparent amber) |
|
Housing |
Ductile cast iron: FCD400 |
|
Rod |
SUS304 |
|
Float |
SUS304 |
|
Bore |
For water |
For air |
|
10A |
1.5-10L/min |
120-400L/min |
|
15A |
1.5-15L/min |
120-500L/min |
|
20A |
1.5-30L/min |
0.12-1m3/min |
|
25A |
9-100L/min |
0.35-3.5m3/min |
|
32A |
60-150L/min |
2.5-6m3/min |
|
40A |
90-200L/min |
3-7m3/min |
|
50A |
80-300LL/min |
3-10m3/min |
|
65A |
250-500L/min |
9-18m3/min |
|
80A |
250-500L/min |
9-18m3/min |
|
100A |
400-900L/min |
15-30m3/min |
*Gas (Applicable t0o N2, H2, Ar, etc)
*Maximum scale range (20°C at 0.005Mpa for AIR)
*Threaded type for 10-25 A
Flange type for 10-100 A
