Features
• Using mechanical detection methods, these types are not
affected by temperatures, humidity, gases, etc. in the tank
• Made with aluminum cases, these types can be installed and
used outdoors
Operation principle

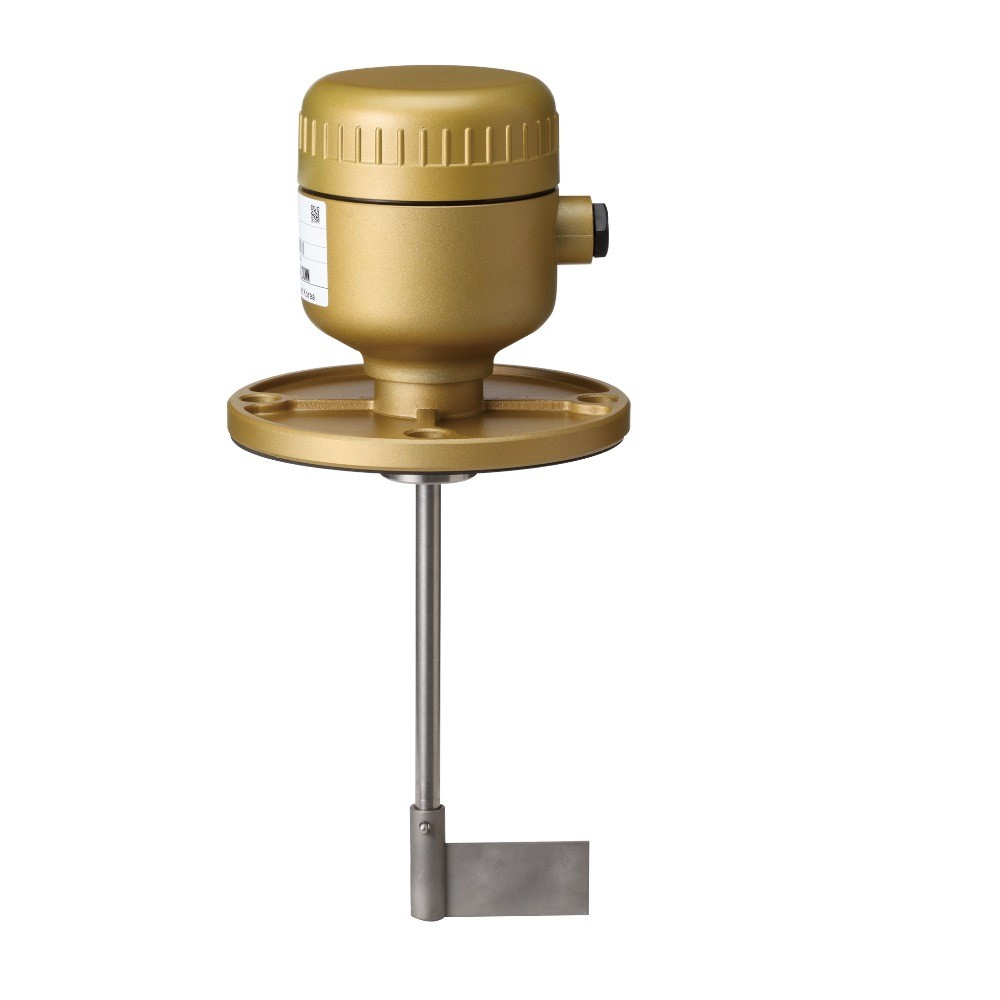

• Operated with mechanical structures, JC7 series detect the
heights of stored goods through the rotational movements of
their wings
• The wings are rotated by the motor. When resistance is
generated on the wings by stored goods, the two microswitches
are operated by the built-in cam.
• The first switch turns the control circuit on/off and the next
switch turns off the motor to prevent motor overload
Specifications
Item Unit JC7
Voltage V AC 110V, AC220V/50/60Hz
Regulation of voltage % ±10
Power consumption W When the wing turns: 3
Contact point capacity AC 250V, 3A
Pressure used Atmospheric pressure
Rotation speed RPM 6
Torque g/cm 500~1000
Weight kg 2.0kg, Heat radiating type
(Separate weight for special products)
Ambient Temperature °C Standard type: 0~60
For heat resistance: 0~120
